Détails sur le produit:
|
| Imperméable: | Non | Taille: | 355x315x580mm |
|---|---|---|---|
| Lancement: | 10mm | Utilisation: | Stockage de carte PCB |
| Condition: | Nouveau | NOM: | porte-magazines de carte PCB |
| Surligner: | Adjustable PCB Magazine Rack,esd magazine rack pcb,PCB Magazine Rack Small |
||

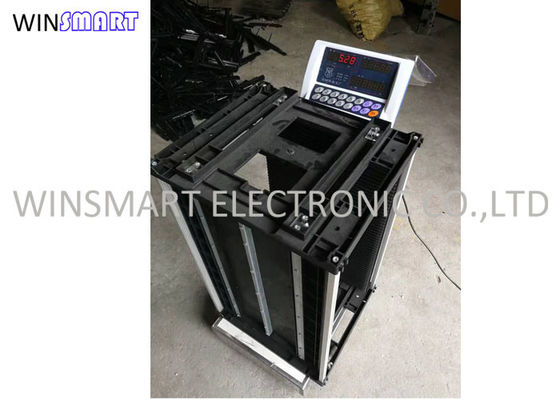

Adjustable PCB Magazine Rack PCB Handing Tool Small Size 355x315x580mm
ESD PCB Magazine Rack Description:
1. Using the movable side plate adjustment, the activity of the movable side plate gear is strengthened, which makes the adjustment time and labor saving, and more flexible.
2. Fixed side plate can be fine-tuned according to different upper and lower trigger requirements
3. Galvanized outer frame is more corrosive, more durable, and the appearance of the product is more beautiful and generous.
ESD PCB Magazine Rack Specification:
| Name | ESD PCB Magazine Rack |
| Surface resistance | 104~106 Ω |
| Overall size | 355x320x563mm |
| Storage capacity | 50pcs |
| PCB Spec | L355xW(50-250)mm |
| Side guide slot | depth 3.5mm, width 5mm, pitch 10mm |
| Heat resistant | 80°C/120°C/200 °C |
| Ref. Position | A=34mm, B=34mm |
| Materials | Aluminum + steel |
ESD PCB Magainze Rack Dimensions Introduction:
1. Dimension: 355x320x563mm, storing 50pcs of 350x(50-250)MM PBC Boards

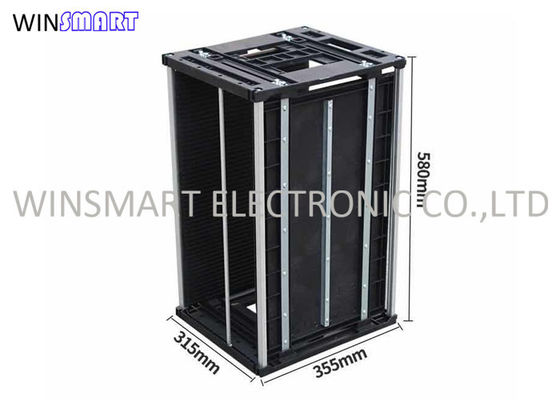

2. Dimension: 355x315x580mm, storing 50pcs of 350x(80-250)MM PBC Boards
3. Dimension: 460x400x563mm, storing 50pcs of 460x(100-330)MM PBC Boards
4. Dimension: 535x460x570mm, storing 50pcs of 535x(50-390)MM PBC Boards
5. Dimension: 535x530x570mm, storing 50pcs of 535x(50-460)MM PBC Boards
Depth 3.5mm, width 5mm, pitch 10mm
ESD PCB Magazine Rack Installation:
