Détails sur le produit:
|
| Utilisation: | Chaîne de production de SMT | Taille de carte PCB: | 530x460mm maximum (pourrait être adapté aux besoins du client) |
|---|---|---|---|
| Application: | Chaîne de production d'Assemblée de carte PCB de SMT | Service après-vente: | Support technique visuel, appui en ligne |
| Épaisseur de carte PCB: | Minute 0.4mm | NOM: | Destacker de carte PCB |
| Surligner: | SMT PCB Loader Unloader,PCB Destacker Machine,PCB Loader Unloader SMEMA Compatible |
||

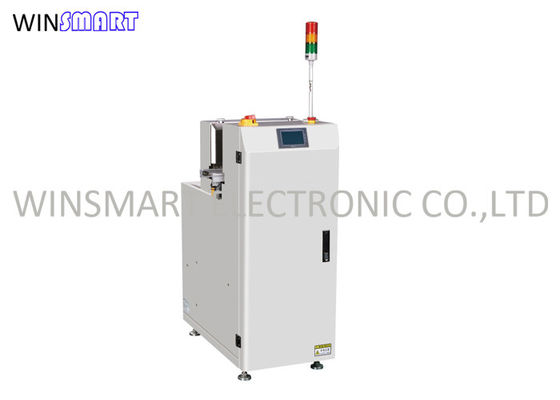

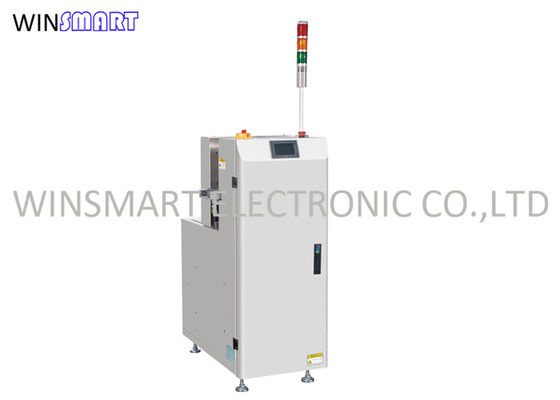

SMT PCB Loader Unloader LED Automatic Vacuum Loader Machine
Product Description
1. Solid and stable design
2. Stable and reliable integrated control system
3. Light touch LED membrane switch or touch screen control
4. Smooth and parallel width adjustment
5. Uninterrupted loading
6. Small machine footprint
7. Machine always fault monitoring
8. SMEMA compatible
Specifications:
| Model No | SMTDS-460 | SMTDS-350 |
| PCB Size(mm) | (50x50)-(530x460) | (50x50)-(450x330) |
| Machine Size(mm) | 700x950x1200 | 550x820x1200 |
| Weight(kg) | 140 | 120 |
Technical Parameters:
| Function | Max PCB Capacity | PCB Loading Time | Power Supply |
| It is used for PCB loading | 200PCS(0.6mm thick) | Approx 6 seconds | 100-230V, 1PH, Max 300VA |
| Transport Height | Transportation Direction | PCB Thickness | Air Pressure |
| 900±20mm(or customized) | L to R or R to L | Min 0.6mm | 4-6Bar |
PCB Transmission:
